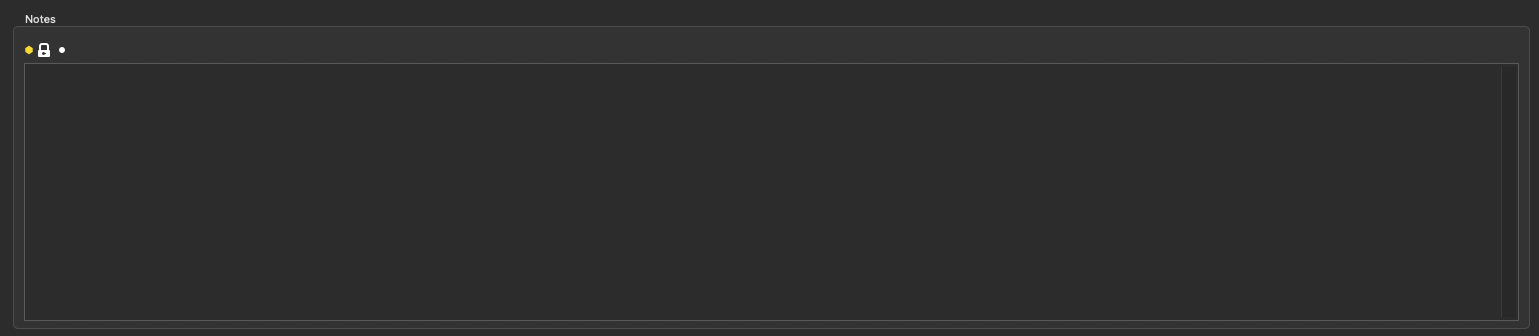

Notes

Notes

Image Notes

Parameter Parameter Name Parameter CLI flag Description Default Value
Notes notes --notes Here you can put your personal notes. This text will be added to the G-code header comments. default: ""

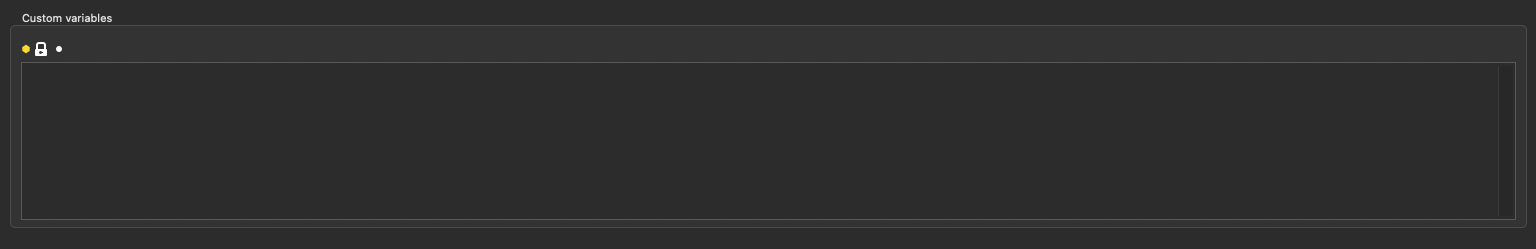

Custom Variables

Image Notes For usage examples see Using custom variables

Parameter Parameter Name Parameter CLI flag Description Default Value
Custom variables print_custom_variables --print-custom-variables You can add data accessible to custom-gcode macros. Each line can define one variable. The format is 'variable_name=value'. the variable name should only have [a-zA-Z0-9] characters or ''. A value that can be parsed as a int or float will be avaible as a numeric value. A value that is enclosed by double-quotes will be available as a string (without the quotes) A value that only takes values as 'true' or 'false' will be a boolean) Every other value will be parsed as a string as-is. Advice: before using a variable, it's safer to use the function 'default_XXX(variable_name, default_value)' (enclosed in bracket as it's a script) in case it's not set. You can replace XXX by 'int' 'bool' 'double' 'string'. default: ""
